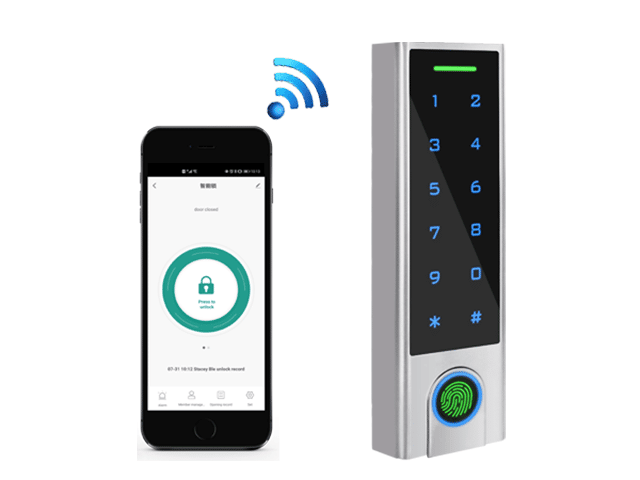

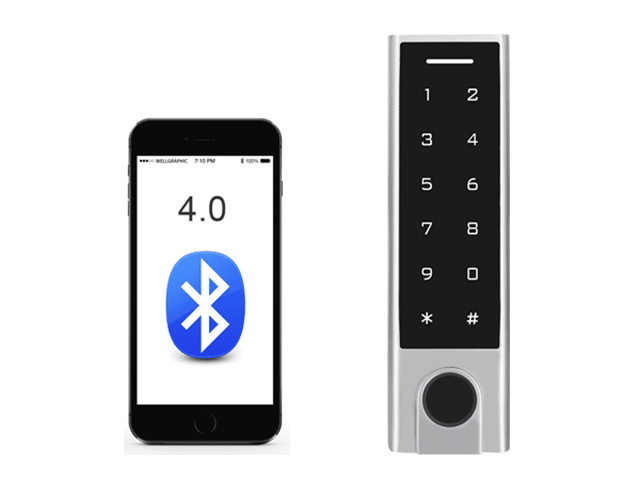

Secukey, HF3-BT Waterproof Fingerprint, Keypad & EM Access Control With Tuya Bluetooth

Description

HF3-BT

Bluetooth TouchKey Access Controller

Capacitive Fingerprint Sensor, touch keypad
Waterproof, conforms to IP66
Metal housing, anti-vandal
Card type: EM Card or Mifare Card
iOS and Android available
Add / Delete users by APP
Support checking Opening Record
Support Gateway
Multiple Access Modes: Smartphone, Fingerprint, Card, PIN

Overview

The HF3-BT is a Bluetooth-enabled waterproof touch keypad + fingerprint + RFID access controller. It’s integrated with Tuya which supports 100 users (including 255 fingerprint / card/ PIN users). It’s available for both iOS and Android

Diamension

Additional information

Brand	SECUKEY

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Secukey, HF3-BT Waterproof Fingerprint, Keypad & EM Access Control With Tuya Bluetooth”

Specifications

User Capacity Common User Visitor User Panic User	Hardware User: 1000 APP User: 100 (including 255 fingerprint / card/ PIN users) 988 (100 Fingerprint Users + 888 PIN/Card Users) 10 2
PIN Length	4~6 digits
Operating Voltage Idle Current Active Current	12~18V DC ≤ 60mA ≤ 150mA
Proximity Card Reader Radio Technlogy Read Range	EM or Mifare 125KHz/13.56MHz 2~6cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay Adjustable Relay Output Time Lock Output Load	One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum
Wiegand Interface PIN Output	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment Operating Temperature Operating Humidity	Meets IP66 -30°C ~ 60°C (-22°F ~ 140°F) 0%RH ~ 98%RH
Physical Colour Dimensions Unit Weight Shipping Weight	Zinc-Alloy Sliver & Black L148 x W43.5 x H22 (mm) 330g 405g
