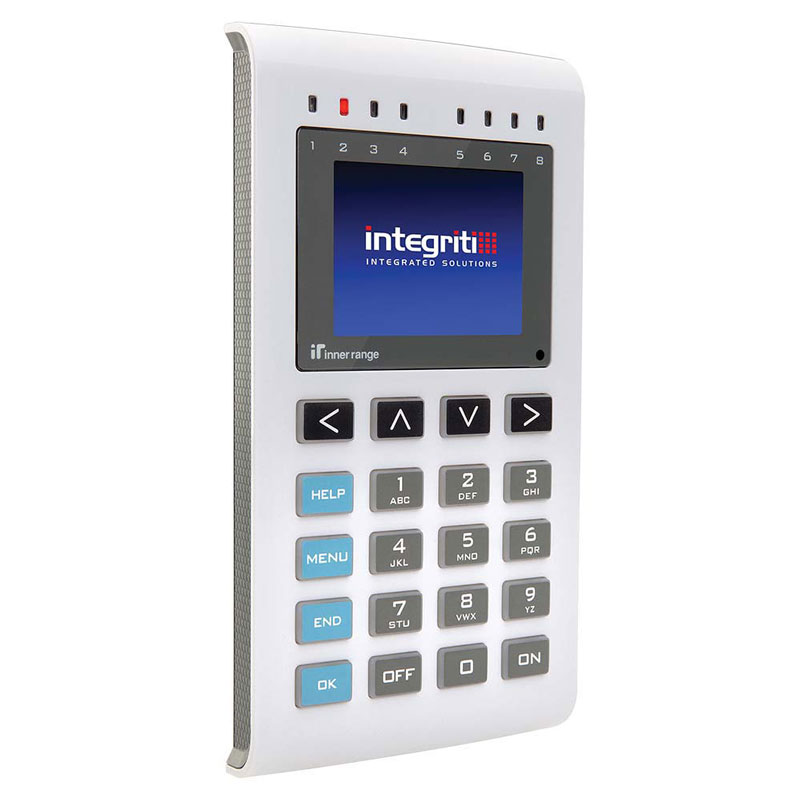

Integriti PrismaX Colour LCD Keypad

Description

Overview

Sharing the same attractive design style as the EliteX, the PrismaX Keypad boasts a full-colour LCD display. End-users will delight in using the PrismaX keypad, with large clear text and icon-driven menus control of the Integriti system is made simple.

Just some of the functions supported include monitoring and acknowledging alarms and events, arming/disarming, unlocking/locking doors, controlling automation functions and isolating zones. Eight dual colour status LEDs can be used to display the armed/disarmed state of areas or for other intruder, access control or automation purposes. An in-built temperature sensor displays the room temperature and can also be integrated into the system for building automation control.

Specification

Physical

• Housing Dimensions: 152h x 90w x 18d mm
• Installation Environment: 0 Degrees – 50Degrees C @ 15% to 85% relative humidity (non-condensing)

Electrical

• Input Voltage: 11V – 14V DC
• Operational Current: Auto current limiting typically less than 100mA @12V (270mA Peak)

Indicators

• Speaker: 8-bit digital sound
• LED Indicators: Array of 8, auto-dimming bi-colour LEDs

User Interface

• LCD Screen: 320 x 240 (QVGA) colour LCD
• LCD Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
• Keypad Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
