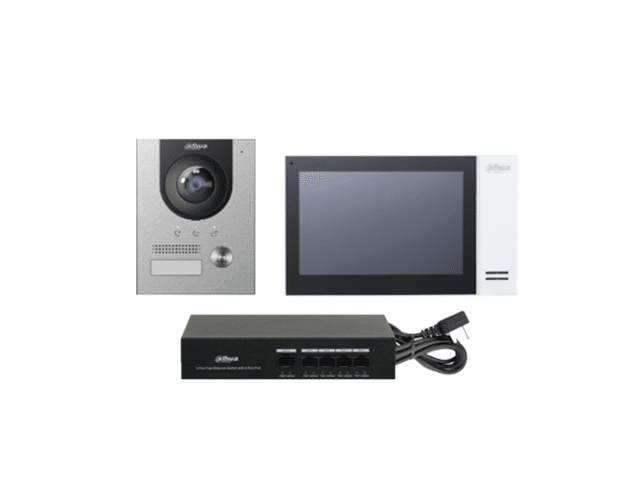

Dahua, KTP01L-S 7″ IP Intercom Kit touch in White

SKU: DHI600 Category: Intercom
Share:
  • Description
  • Additional information
  • Reviews (0)
  • specifications
  • Downloads
Description

Description

Description

KTP01L

IP Villa Door Station

  • Anodized alumimum front panel
  • CMOS low illumination 2MP HD colorful 140° camera
  • Video intercom function
  • Access control function that supports two locks
  • Use the app to talk to visitors or unlock the door remotely on your phone
  • Surface mounted and flush mounted.
  • PoE
  • IK07&IP65



IP Indoor Monitor

  • 7″ TFT capacitive touch screen
  • 6-channel alarm input and 1-channel alarm output
  • Supports standard PoE
  • SOS alarm
  • Supports daisy chain topology



Switch

  • Port1-4: 4 × RJ-45 10/100 M (PoE)
  • Supports guide rail mount.
Additional information

Additional information

Brand

DAHUA

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Dahua, KTP01L-S 7″ IP Intercom Kit touch in White” Cancel reply

Your email address will not be published. Required fields are marked *

specifications
Technical Specification
DHI-VTO2201F-P
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P
Basic
Camera 1/2.9″ 2MP CMOS Low Illumination HD Colorful Camera
Field of View Horizontal: 140°; vertical: 79.6; diagonal:159°
Focal Length 2.0 mm
WDR 120 dB
Noise Reduction 3D DNR
Video Compression H.265
Video Resolution 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 8 Mbps
Light Compensation Auto IR
Day/Night Auto (ICR)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Status Indicator Light 3
Port
RS485 1
Alarm Output 1
Power Output 1-ch 12 VDC 100mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port One RJ45 10M/100M network port
General
Appearance color Silver
Power Supply DC 24V 1A Standard PoE
Power Adapter Optional
Installation Flush/surface mount
Certifications CE; FCC; UL
Product Dimensions 130 mm × 96 mm × 28.5 mm (5.12″ × 3.78″ × 1.12″)
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption ≤ 8W
Net Weight 0.35 kg (0.77 lb)
Gross Weight 0.4 kg (0.88 lb)
DHI-VTH2421FW-P
System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Touch keypad
Interoperability ONVIF
Network Protocol RTSP; RTP; SIP; DNS; SSH
Basic
Screen Type Capacitive
Display Screen 7-inch TFT
Resolution 1024 × 600
Audio Compression G.711a; G.711u; PCM
Audio Input 1
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression
Audio Bit Rate 16 KHz, 16 Bit
Communication Mode IP KIT
Information Release Supports viewing text announcement from the center ( insert an SD card to receive and view pictures)
Leave Videos Yes (SD card inserted in VTH is needed)
Storage Extensible 64 GB Micro SD card
Port
RS-485 1
Alarm Input 6
Alarm Output 1
Power Output 1, 12V/100mA
Door Bell Yes, reusing any alarm input port
Network Port One 10 Mbps/100 Mbps Ethernet port
General
Casing PC + ABS
Appearance color White
Power Supply DC12V 1A  Standard PoE
Power Adapter Optional
Installation Surface mount
Certifications CE; FCC; UL
Accessory Bracket (standard) Alarm ribbon cable (standard)
Product Dimensions 189.0 mm × 130.0 mm × 26.9 mm (7.44″ × 5.12″ × 1.06″)
Operating Temperature –10°C to +55°C (14°F to 131°F)
Operating Humidity 10%–95% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption Standby ≤ 2W, working ≤ 6W
Net Weight 0.388 kg (0.86 lb)
Gross Weight 0.74 kg (1.63 lb)
DH-PFS3005-4ET-36E
General
Network Port Port1-4: 4 × RJ-45 10/100 M (PoE) Port 5: 1 × RJ-45 10/100 M (uplink)
Appearance color Black
Power Supply 100–240 VAC
Power Adapter Standard
Certifications CE; FCC; UL
Product Dimensions 170 mm × 100 mm × 35 mm (6.69″ × 3.94″ × 1.38″)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude 0–3000 m (0–9842.52 ft)
Net Weight 0.45 kg (0.99 lb)
Downloads
Product Brochure
